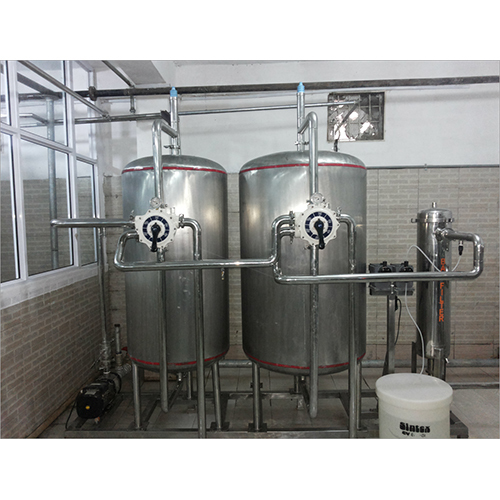

Water Treatment Plant

About Water Treatment Plant

A Water Treatment Plant (WTP) is an integrated system designed to purify raw water from various sources such as rivers, lakes, borewells, or industrial wastewater, making it suitable for domestic, commercial, or industrial use. The treatment process involves multiple stages that remove suspended solids, dissolved impurities, microorganisms, and chemical contaminants to meet desired water quality standards.

Key Components and Process Flow:

1. Raw Water Intake System:
   The process begins with the collection of raw water through pumps or gravity flow systems equipped with coarse screens to remove large debris and floating particles.

2. Coagulation and Flocculation Unit:
   Chemicals like alum or poly-electrolytes are added to destabilize suspended particles, allowing them to clump together into larger aggregates (flocs) for easier removal.

3. Sedimentation Tank:
   In this stage, the flocculated water is allowed to settle under gravity, separating heavier particles from the clarified water.

4. Filtration System:

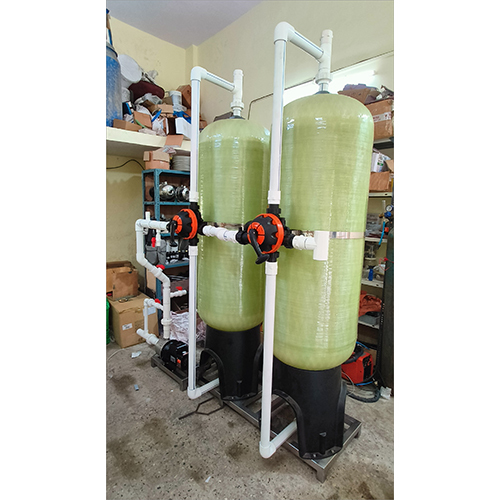

   The clarified water passes through multi-media filters or pressure sand filters to remove remaining fine particles and turbidity. Activated carbon filters may also be used to eliminate odor, color, and organic impurities.

5. Disinfection Unit:
   Chlorination, ultraviolet (UV) treatment, or ozonation ensures complete destruction of harmful bacteria, viruses, and pathogens, making the water microbiologically safe.

6. pH Correction and Chemical Dosing:
   pH adjusters and corrosion inhibitors are added to maintain optimal water chemistry suitable for the intended application.

7. Storage and Distribution System:
   Treated water is stored in clean water tanks and distributed through pipelines or pumps for industrial, municipal, or commercial use.

Types of Water Treatment Plants:

• Industrial Water Treatment Plants for process water and boiler feed applications.

• Municipal Drinking Water Treatment Plants for city and township supply.

• Packaged Water Treatment Plants compact, skid-mounted units for quick installation.

• Wastewater & Sewage Treatment Plants (STP/ETP) for recycling and reuse applications.

Technical Specifications (Example):

• Flow Capacity: 1,000 LPH to 1,000,000 LPH

• Filtration Media: Quartz sand, Anthracite, Activated Carbon

• Material of Construction: FRP / MS / SS304 / SS316

• Power Supply: 415V 10%, 50 Hz, 3 Phase AC

• Automation Level: Manual / Semi-Automatic / Fully Automatic

• Outlet Water Quality: As per BIS / WHO / Industrial Standards

Salient Features:

• High efficiency in removal of suspended and dissolved impurities

• Energy-efficient and low-maintenance design

• Modular and space-saving construction

• Corrosion-resistant materials ensure long service life

• Option for automation with PLC and SCADA systems

Versatile and High-Efficiency Water Treatment

This prefabricated water treatment plant is suitable for industrial, residential, and commercial purposes, delivering up to 100 m3/hr of treated water. Built with durable materials and high-quality components such as carbon and sand filters, it ensures efficient removal of contaminants. The plant is designed to provide consistently pure water with a 99% purification rate, making it an excellent choice for various water-dependent operations.


Easy Installation and Reliable Operation

Prefabricated for convenience, this water treatment plant allows swift installation on-site. Its semi-automatic controls, 440V electric power source, and centrifugal pump ensure trouble-free operation. With a focus on reliability, the plant's efficiency is measured at 100%, offering users peace of mind with its robust performance and dependable warranty coverage.
